Description
- Heavy Duty Industrial Fan: build around an energy efficient motor for smooth and vibration free operations. Lubricated motors and coated metal parts of industrial fan protect against airborne debris and corrosive fumes. Three aluminum paddle blades attached to steel hub steel coated front and back spiral wire guards for durability
- Easy Working Mechanism: 3-speed workstation fan provides initial torque needed to start up a large blade fan. The 360-degree vertical and horizontal swivel of air circulators provide uninterrupted airflow in different corners of room. Totally enclosed motor, pull chain type on/off switch
- Safe Industrial Fan: the air circulation fan meets workplace safety standards. Electronic circuity of wall mounting fan matches power specification found in work place, and provides greater safety for employees meets OSHA standards
- Utility of Workshop Fan: helps to exhaust fumes or direct airflow in various workplace environments. Industrial fan has 2.2-amp, 120-volt, single phase, 1/8 horsepower, ideal for warehouses, gyms, and other commercial environments to ventilate spaces
- Easy to Install Workstation Fan: the fan comes with quick and easy installation and can be mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface. Mounting mechanism of the pedestal fan assist in precise placement to direct large volumes of air flow

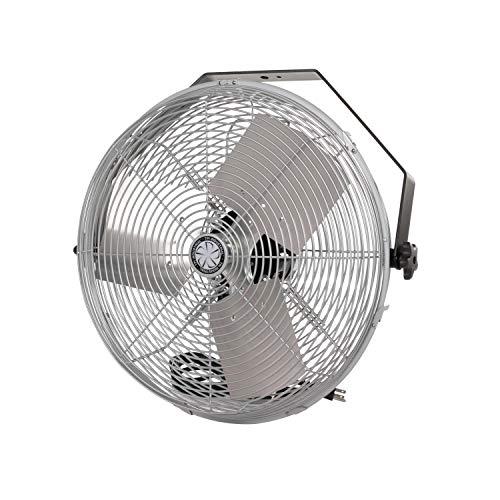

This TPI Corporation U 18-TE single phase 18-inch diameter industrial workstation fan has a built-in swivel mount and is suitable for providing air circulation at an industrial workstation. The blade assembly, consisting of a steel hub and spider, holds the fan heads three aluminum paddles, which are enclosed by front and rear powder-coated steel wire guards for strength and resistance to corrosion. The built-in mount swivels 360 degrees vertically and horizontally for precise direction of air flow. The motor of the TPI workstation fan is totally enclosed, making it suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of dust or other airborne debris. Specifications Motor3-speed, 2.2 amp, 120 volt, single phase, 1/8 horsepower, permanently lubricated, totally closed sleeve bearing motor Switch typePull chainCord10 foot SJT type three-conductor cord Blades Aluminum (3)Blade guardsPowder-coated steel wireCubic feet per minute (CFM)4600 / 4200 / 3200Weight20 lbs.Dimensions21.5 x 20.5 x 10.5 inches (H x W x D)
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Industrial fans are used in workplace environments to exhaust fumes or direct air flow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes. They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of air flow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.
TPI Corporation manufactures industrial and commercial electrical heaters, process heat ovens, ventilation products and fans, lighting equipment, and thermostatic controls. The company, founded in 1950, is headquartered in Johnson City, TN.
