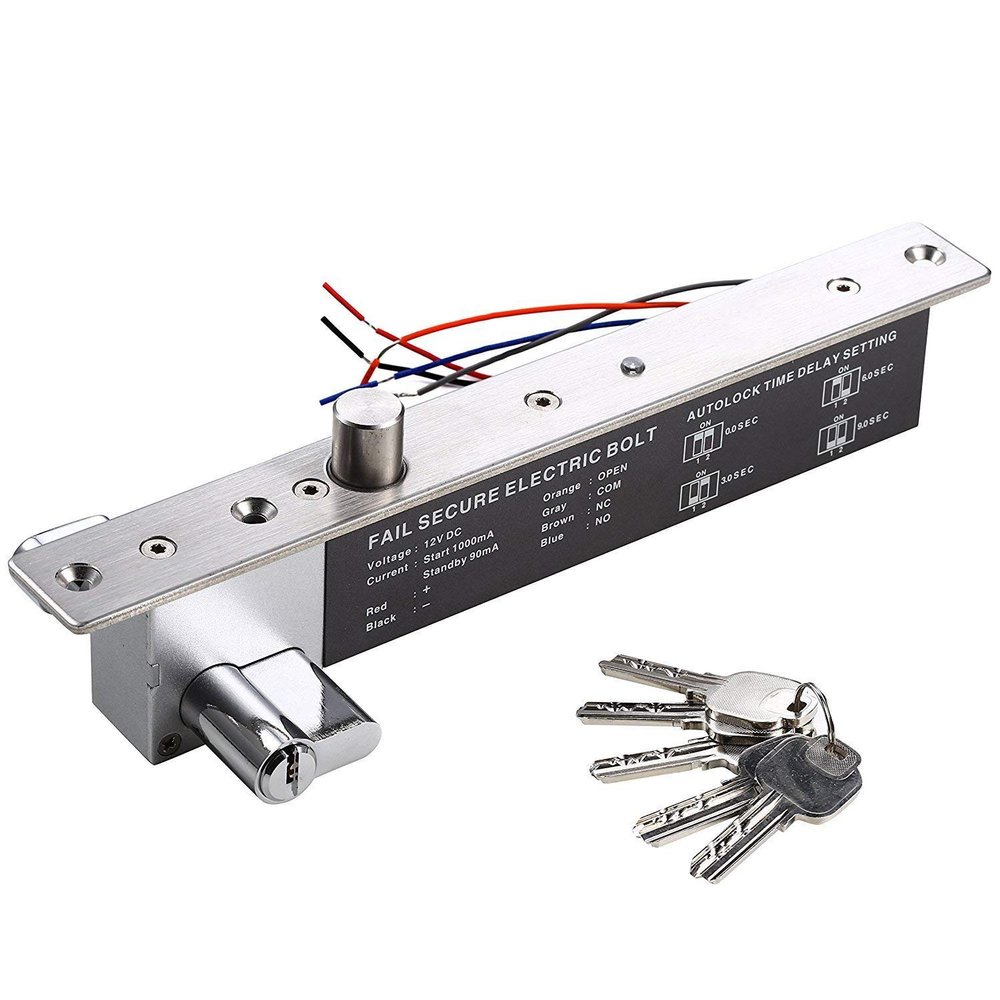

UHPPOTE Electric Drop Bolt Lock with Key Open Heavey Duty Fail-Secure 12V

Description

• Fail-Secure Security Mode: Keeps locked when power is off, unlocks only with power supply. Provides higher security, prevents unauthorized opening, great for warehouses, storage rooms and confidential rooms.
• Solid Stainless Steel Bolt Structure - Solid lock bolt and thickened body, Strong bearing capacity, stable locking for long-term frequent use.
• Built-in LED Status Indicator - Clear LED light shows lock/unlock status in real time. Easy to check working condition day and night.
• Dual Unlock Ways with Emergency Key - Comes with 5 physical keys for manual override. When the access control system loses power or malfunctions, you can unlock the door directly with the key, effectively solving emergency access problems and adding extra security backup.
• Wide Compatibility - Matches most access control systems, suitable for wooden door, glass door, metal door, fireproof door, etc.

Advantage:
Low Temperature, safe & Durable
Low Power,Environmental Protection
Special photoelectricity control, three steps current application
MOV Provides Reverse Current Protection
Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
Double protection for loading current
Auto-relock if no Action within 5 secs
Certificate: CE & MA
Photoelectricity Control, Low Temperature
A: The Low Current is Changed immediately
B: When door frame doesn't coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C: The Photoelectricity Control Technology, prevent the mechanical defect
Specifications:
Fail Secure: Locked when power is removed
Lock Body: 260Lx30Wx48H(mm) / 10.24Lx1.18Wx1.89H(in)
Magnetic Plate: 100Lx25Wx2.5H(mm) / 3.94Lx0.98Wx0.1H(in)
Bolt: 16mm/0.63in DIA, stainless steel 16mm/0.63in throw
Voltage: DC12V
Start Current: 1200mA
Standby Current: 200mA
Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicator: Red light on indicates lock actived; Light off indicates locked.
Autolock Time Delay: 0/3/6/9sec
Operating temp: -10~55(14~131)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Signal Output: Lock signal(NO/NC/COM)
Material: 304 stainless steel, wire draw finishing
Induction Distance: Within 8mm/0.31in
Weight: 1.6kg / 3.52lb
Package:
1 x Electric Lock
1 x User manual
1 x Screws and Installation Kit
Tips: Default come with single side cylinder with Thumb
